Missile Class Reference

#include <missile.h>

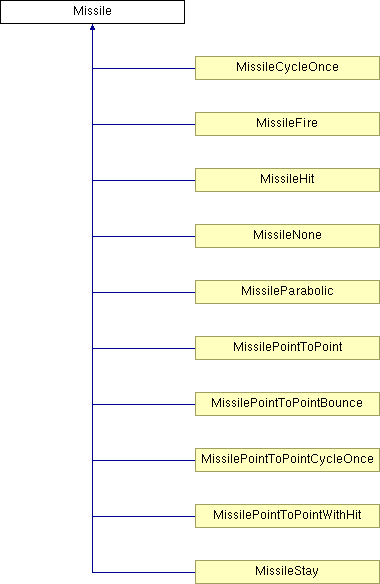

Inheritance diagram for Missile:

List of all members.

Public Member Functions

virtual ~Missile ()

virtual void Action ()=0

void DrawMissile () const

void SaveMissile (CFile *file) const

Static Public Member Functions

static Missile * Init (MissileType *mtype, int sx, int sy, int dx, int dy)

Public Attributes

int SourceX

Missile Source X.

int SourceY

Missile Source Y.

int X

missile pixel position

int Y

missile pixel position

int DX

missile pixel destination

int DY

missile pixel destination

MissileType * Type

missile-type pointer

int SpriteFrame

sprite frame counter

int State

state

int AnimWait

Animation wait.

int Wait

delay between frames

int Delay

delay to showup

CUnit * SourceUnit

unit that fires (could be killed)

CUnit * TargetUnit

target unit, used for spells

int Damage

direct damage that missile applies

int TTL

time to live (ticks) used for spells

int Hidden

If this is 1 then the missile is invisible.

int CurrentStep

Current step (0 <= x < TotalStep).

int TotalStep

Total step.

unsigned Local:1

missile is a local missile

unsigned int Slot

unique number for draw level.

Static Public Attributes

static unsigned int Count = 0

slot number generator.

Protected Member Functions

Missile ()

Detailed Description

< Missile on the map

#include "missile.h"

This structure contains all information about a missile in game. A missile could have different effects, based on its missile-type. Missiles could be saved and stored with CCL. See (missile). Currently only a tile, a unit or a missile could be placed on the map.

The missile structure members:

Missile::X Missile::Y

Missile current map position in pixels. To convert a map tile position to pixel position use: (mapx * TileSizeX + TileSizeX / 2) and (mapy * TileSizeY + TileSizeY / 2)

Note:: TileSizeX % 2 == 0 && TileSizeY % 2 == 0

Missile::SourceX Missile::SourceY

Missile original map position in pixels. To convert a map tile position to pixel position use: (mapx*TileSizeX+TileSizeX/2) and (mapy*TileSizeY+TileSizeY/2)

Note:: TileSizeX2==0 && TileSizeY2==0 and TileSizeX, TileSizeY are currently fixed 32 pixels.

Missile::DX Missile::DY

Missile destination on the map in pixels. If Missile::X==MissileDX and Missile::Y==MissileDY the missile stays at its position. But the movement also depends on MissileType::Class.

Missile::Type

MissileType pointer of the missile, contains the shared informations of all missiles of the same type.

Missile::SpriteFrame

Current sprite frame of the missile. The range is from 0 to MissileType::SpriteFrames-1. The topmost bit (128) is used as flag to mirror the sprites in X direction. Animation scripts aren't currently supported for missiles, everything is handled by MissileType::Class

Note:: If wanted, we can add animation scripts support to the engine.

Missile::State

Current state of the missile. Used for a simple state machine.

Missile::AnimWait

Animation wait. Used internally by missile actions, to run the animation in parallel with the rest.

Missile::Wait

Wait this number of game cycles until the next state or animation of this missile is handled. This counts down from MissileType::Sleep to 0.

Missile::Delay

Number of game cycles the missile isn't shown on the map. This counts down from MissileType::StartDelay to 0, before this happens the missile isn't shown and has no effects.

Note:: This can also be used by MissileType::Class for temporary removement of the missile.

Missile::SourceUnit

The owner of the missile. Normally the one who fired the missile. Used to check units, to prevent hitting the owner when field MissileType::CanHitOwner==true. Also used for kill and experience points.

Missile::TargetUnit

The target of the missile. Normally the unit which should be hit by the missile.

Missile::Damage

Damage done by missile. See also MissileType::Range, which denoted the 100% damage in center.

Missile::TTL

Time to live in game cycles of the missile, if it reaches zero the missile is automatic removed from the map. If -1 the missile lives for ever and the lifetime is handled by Missile::Type:MissileType::Class

Missile::Hidden

When you set this to 1 the unit becomes hidden for a while.

Missile::CurrentStep

Movement step. Used for the different trajectories.

Missile::TotalStep

Maximum number of step. When CurrentStep >= TotalStep, the movement is finished.

Missile::Local

This is a local missile, which can be different on all computer in play. Used for the user interface (fe the green cross).

Missile::MissileSlot

Pointer to the slot of this missile. Used for faster freeing.

Definition at line 417 of file missile.h.

Constructor & Destructor Documentation

Missile::Missile ( ) [protected]

Constructor

Definition at line 142 of file missile.cpp.

References Count, and Slot.

virtual Missile::~Missile ( ) [inline, virtual]

Definition at line 422 of file missile.h.

Member Function Documentation

Missile * Missile::Init	(	MissileType *	mtype,
		int	sx,
		int	sy,
		int	dx,
		int	dy
	)			`[static]`

Initialize a new made missile.

Parameters:

	mtype	Type pointer of missile.
	sx	Missile x start point in pixel.
	sy	Missile y start point in pixel.
	dx	Missile x destination point in pixel.
	dy	Missile y destination point in pixel.

Returns:: created missile.

Definition at line 164 of file missile.cpp.

References MissileType::Class, Delay, DX, DY, MissileType::Height, MissileClassCycleOnce, MissileClassFire, MissileClassHit, MissileClassNone, MissileClassParabolic, MissileClassPointToPoint, MissileClassPointToPointBounce, MissileClassPointToPointCycleOnce, MissileClassPointToPointWithHit, MissileClassStay, MissileType::Sleep, SourceX, SourceY, MissileType::StartDelay, Type, Wait, MissileType::Width, X, and Y.

Referenced by MakeLocalMissile(), and MakeMissile().

virtual void Missile::Action ( ) [pure virtual]

Implemented in MissileNone, MissilePointToPoint, MissilePointToPointWithHit, MissilePointToPointCycleOnce, MissilePointToPointBounce, MissileStay, MissileCycleOnce, MissileFire, MissileHit, and MissileParabolic.

void Missile::DrawMissile ( ) const

Draw missile.

Definition at line 510 of file missile.cpp.

References Assert, MissileType::Class, CurrentViewport, Damage, MissileType::DrawMissileType(), GameFont, CViewport::MapX, CViewport::MapY, MissileClassHit, CViewport::OffsetX, CViewport::OffsetY, SpriteFrame, TileSizeX, TileSizeY, Type, VideoDrawNumberClip(), CViewport::X, X, CViewport::Y, Y, and y.

Referenced by CViewport::Draw().

void Missile::SaveMissile ( CFile * file ) const

Save the state of a missile to file.

Parameters:

file

Output file.

Definition at line 1057 of file missile.cpp.

References AnimWait, CurrentStep, Damage, Delay, DX, DY, Hidden, MissileType::Ident, Local, CFile::printf(), SourceUnit, SourceX, SourceY, SpriteFrame, State, TargetUnit, TotalStep, TTL, Type, UnitReference(), Wait, X, and Y.

Member Data Documentation

int Missile::SourceX

Missile Source X.

Definition at line 431 of file missile.h.

Referenced by MissilePointToPointBounce::Action(), CclMissile(), Init(), MissileInitMove(), NextMissileFrame(), NextMissileFrameCycle(), ParabolicMissile(), PointToPointMissile(), and SaveMissile().

int Missile::SourceY

Missile Source Y.

Definition at line 432 of file missile.h.

Referenced by MissilePointToPointBounce::Action(), CclMissile(), Init(), MissileInitMove(), NextMissileFrame(), ParabolicMissile(), PointToPointMissile(), and SaveMissile().

int Missile::X

missile pixel position

Definition at line 433 of file missile.h.

Referenced by MissileFire::Action(), MissilePointToPointBounce::Action(), CclMissile(), DrawMissile(), GetMissileMapArea(), Init(), MissileHit(), MissileInitMove(), NextMissileFrame(), NextMissileFrameCycle(), ParabolicMissile(), PlayMissileSound(), PointToPointMissile(), SaveMissile(), and ViewPointDistanceToMissile().

int Missile::Y

missile pixel position

Definition at line 434 of file missile.h.

Referenced by MissileFire::Action(), MissilePointToPointBounce::Action(), CclMissile(), DrawMissile(), GetMissileMapArea(), Init(), MissileHit(), MissileInitMove(), NextMissileFrame(), ParabolicMissile(), PointToPointMissile(), SaveMissile(), and ViewPointDistanceToMissile().

int Missile::DX

missile pixel destination

Definition at line 435 of file missile.h.

Referenced by MissilePointToPointBounce::Action(), CclMissile(), Init(), MissileInitMove(), NextMissileFrame(), NextMissileFrameCycle(), ParabolicMissile(), PointToPointMissile(), and SaveMissile().

int Missile::DY

missile pixel destination

Definition at line 436 of file missile.h.

Referenced by MissilePointToPointBounce::Action(), CclMissile(), Init(), MissileInitMove(), NextMissileFrame(), ParabolicMissile(), PointToPointMissile(), and SaveMissile().

int Missile::SpriteFrame

sprite frame counter

Definition at line 438 of file missile.h.

Referenced by MissileFire::Action(), CclMissile(), DrawMissile(), MissileNewHeadingFromXY(), NextMissileFrame(), NextMissileFrameCycle(), and SaveMissile().

int Missile::State

state

Definition at line 439 of file missile.h.

Referenced by MissileCycleOnce::Action(), MissilePointToPointBounce::Action(), CclMissile(), MissileInitMove(), and SaveMissile().

int Missile::AnimWait

Animation wait.

Definition at line 440 of file missile.h.

Referenced by CclMissile(), and SaveMissile().

int Missile::Wait

delay between frames

Definition at line 441 of file missile.h.

Referenced by MissileParabolic::Action(), MissileHit::Action(), MissileFire::Action(), MissileCycleOnce::Action(), MissilePointToPointBounce::Action(), MissileStay::Action(), MissilePointToPointCycleOnce::Action(), MissilePointToPointWithHit::Action(), MissilePointToPoint::Action(), MissileNone::Action(), CclMissile(), Init(), MissilesActionLoop(), and SaveMissile().

int Missile::Delay

delay to showup

Definition at line 442 of file missile.h.

Referenced by CclMissile(), Init(), MissilesActionLoop(), and SaveMissile().

CUnit* Missile::SourceUnit

unit that fires (could be killed)

Definition at line 444 of file missile.h.

Referenced by MissileFire::Action(), CclMissile(), FireMissile(), FreeMissile(), HitUnit(), MissileHit(), MissileHitsGoal(), and SaveMissile().

CUnit* Missile::TargetUnit

target unit, used for spells

Definition at line 445 of file missile.h.

Referenced by CclMissile(), FireMissile(), FreeMissile(), MissileHit(), and SaveMissile().

int Missile::Damage

direct damage that missile applies

Definition at line 447 of file missile.h.

Referenced by CclMissile(), DrawMissile(), HitUnit(), MissileHitsGoal(), and SaveMissile().

int Missile::TTL

time to live (ticks) used for spells

Definition at line 449 of file missile.h.

Referenced by MissileParabolic::Action(), MissileHit::Action(), MissileFire::Action(), MissileCycleOnce::Action(), MissilePointToPointBounce::Action(), MissileStay::Action(), MissilePointToPointCycleOnce::Action(), MissilePointToPointWithHit::Action(), MissilePointToPoint::Action(), CclMissile(), MissilesActionLoop(), and SaveMissile().

int Missile::Hidden

If this is 1 then the missile is invisible.

Definition at line 450 of file missile.h.

Referenced by CclMissile(), and SaveMissile().

int Missile::CurrentStep

Current step (0 <= x < TotalStep).

Definition at line 453 of file missile.h.

Referenced by CclMissile(), MissileInitMove(), ParabolicMissile(), PointToPointMissile(), and SaveMissile().

int Missile::TotalStep

Total step.

Definition at line 454 of file missile.h.

Referenced by MissilePointToPointBounce::Action(), CclMissile(), MissileInitMove(), ParabolicMissile(), PointToPointMissile(), and SaveMissile().

unsigned Missile::Local

missile is a local missile

Definition at line 456 of file missile.h.

Referenced by CclMissile(), MakeLocalMissile(), and SaveMissile().

unsigned int Missile::Slot

unique number for draw level.

Definition at line 457 of file missile.h.

Referenced by Missile(), and MissileDrawLevelCompare().

unsigned int Missile::Count = 0 [static]

slot number generator.

Definition at line 460 of file missile.h.

Referenced by Missile().

The documentation for this class was generated from the following files:
