ImageCheckBox Class Reference

#include <widgets.h>

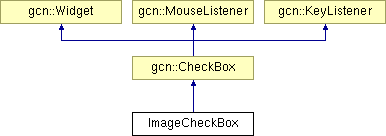

Inheritance diagram for ImageCheckBox:

List of all members.

Public Member Functions
	ImageCheckBox ()
	ImageCheckBox (const std::string &caption, bool marked=false)
virtual void	draw (gcn::Graphics *graphics)
virtual void	drawBox (gcn::Graphics *graphics)
virtual void	mousePress (int x, int y, int button)
virtual void	mouseRelease (int x, int y, int button)
virtual void	mouseClick (int x, int y, int button, int count)
virtual void	adjustSize ()
void	setUncheckedNormalImage (gcn::Image *image)
void	setUncheckedPressedImage (gcn::Image *image)
void	setCheckedNormalImage (gcn::Image *image)
void	setCheckedPressedImage (gcn::Image *image)
Public Attributes
gcn::Image *	uncheckedNormalImage
gcn::Image *	uncheckedPressedImage
gcn::Image *	checkedNormalImage
gcn::Image *	checkedPressedImage
bool	mMouseDown

---

Detailed Description

Definition at line 133 of file widgets.h.

---

Constructor & Destructor Documentation

ImageCheckBox::ImageCheckBox

(

)

Image checkbox constructor

Definition at line 544 of file widgets.cpp.

ImageCheckBox::ImageCheckBox	(	const std::string &	caption,
		bool	marked = false
	)

Image checkbox constructor

Definition at line 554 of file widgets.cpp.

---

Member Function Documentation

void ImageCheckBox::draw

(

gcn::Graphics *

graphics

)

[virtual]

Draw the image checkbox

Reimplemented from gcn::CheckBox.

Definition at line 565 of file widgets.cpp.

References drawBox(), gcn::Graphics::drawRectangle(), gcn::Graphics::drawText(), gcn::CheckBox::getCaption(), gcn::Widget::getFont(), gcn::Widget::getForegroundColor(), gcn::Widget::getHeight(), gcn::Widget::getWidth(), gcn::Image::getWidth(), gcn::Widget::hasFocus(), gcn::Graphics::setColor(), gcn::Graphics::setFont(), and uncheckedNormalImage.

void ImageCheckBox::drawBox

(

gcn::Graphics *

graphics

)

[virtual]

Draw the checkbox (not the caption)

Reimplemented from gcn::CheckBox.

Definition at line 591 of file widgets.cpp.

References checkedNormalImage, checkedPressedImage, gcn::Graphics::drawImage(), gcn::Image::getHeight(), gcn::Widget::getHeight(), gcn::Image::getWidth(), gcn::CheckBox::mMarked, mMouseDown, uncheckedNormalImage, and uncheckedPressedImage.

Referenced by draw().

void ImageCheckBox::mousePress	(	int	x,
		int	y,
		int	button
	)			[virtual]

Mouse button pressed callback

Reimplemented from gcn::MouseListener.

Definition at line 620 of file widgets.cpp.

References gcn::Widget::hasMouse(), gcn::MouseInput::LEFT, and mMouseDown.

void ImageCheckBox::mouseRelease	(	int	x,
		int	y,
		int	button
	)			[virtual]

Mouse button released callback

Reimplemented from gcn::MouseListener.

Definition at line 630 of file widgets.cpp.

References gcn::MouseInput::LEFT, and mMouseDown.

void ImageCheckBox::mouseClick	(	int	x,
		int	y,
		int	button,
		int	count
	)			[virtual]

Mouse clicked callback

Reimplemented from gcn::CheckBox.

Definition at line 640 of file widgets.cpp.

References gcn::MouseInput::LEFT, and gcn::CheckBox::toggle().

void ImageCheckBox::adjustSize

(

)

[virtual]

Adjusts the size to fit the image and font size

Reimplemented from gcn::CheckBox.

Definition at line 650 of file widgets.cpp.

References gcn::Widget::getFont(), gcn::Image::getHeight(), gcn::Widget::getWidth(), gcn::Image::getWidth(), gcn::CheckBox::mCaption, gcn::Widget::setHeight(), gcn::Widget::setWidth(), and uncheckedNormalImage.

void ImageCheckBox::setUncheckedNormalImage

(

gcn::Image *


)

[inline]

Definition at line 147 of file widgets.h.

References uncheckedNormalImage.

void ImageCheckBox::setUncheckedPressedImage

(

gcn::Image *


)

[inline]

Definition at line 148 of file widgets.h.

References uncheckedPressedImage.

void ImageCheckBox::setCheckedNormalImage

(

gcn::Image *


)

[inline]

Definition at line 149 of file widgets.h.

References checkedNormalImage.

void ImageCheckBox::setCheckedPressedImage

(

gcn::Image *


)

[inline]

Definition at line 150 of file widgets.h.

References checkedPressedImage.

---

Member Data Documentation

gcn::Image* ImageCheckBox::uncheckedNormalImage

Definition at line 152 of file widgets.h.

Referenced by adjustSize(), draw(), drawBox(), and setUncheckedNormalImage().

gcn::Image* ImageCheckBox::uncheckedPressedImage

Definition at line 153 of file widgets.h.

Referenced by drawBox(), and setUncheckedPressedImage().

gcn::Image* ImageCheckBox::checkedNormalImage

Definition at line 154 of file widgets.h.

Referenced by drawBox(), and setCheckedNormalImage().

gcn::Image* ImageCheckBox::checkedPressedImage

Definition at line 155 of file widgets.h.

Referenced by drawBox(), and setCheckedPressedImage().

bool ImageCheckBox::mMouseDown

Definition at line 156 of file widgets.h.

Referenced by drawBox(), mousePress(), and mouseRelease().

---

The documentation for this class was generated from the following files:

• widgets.h
• widgets.cpp
